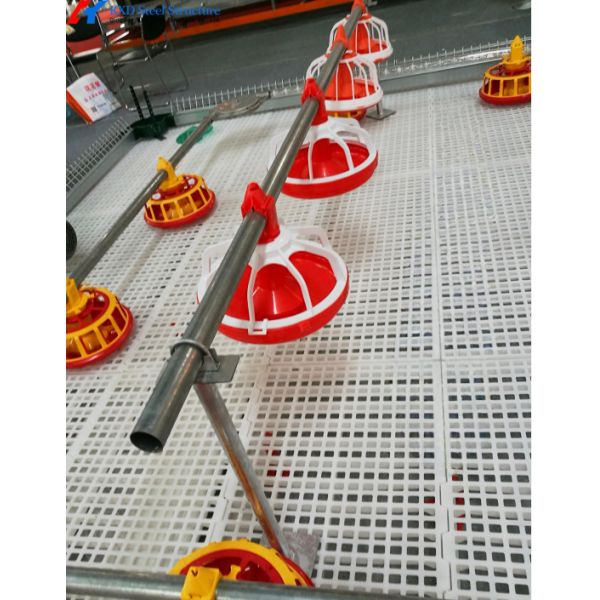

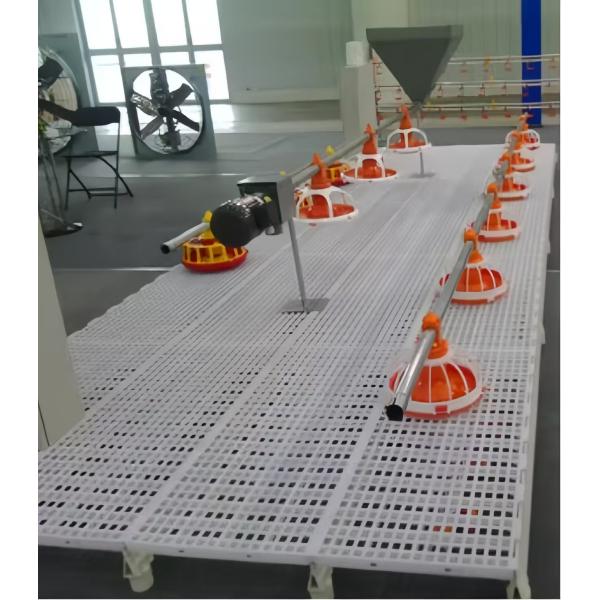

Poultry Farm Broiler Plastic Slatted Flooring Chicken Floor Goat House Plastic Slatted Floor
Drinking System
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.Automatic drinking system will include nipple drinkers, filter, pipe connection,lifting piece, dosing device, tube fix clip.s-hook,lifter, small pulley, nylon cord.

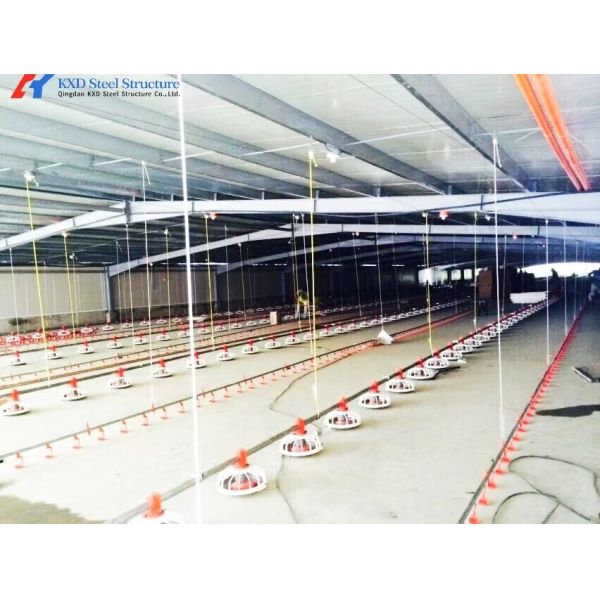

Broiler Feeding on Ground Introduction
Broiler feeding system, consists of automatic feeding&drinking system, environmental control sewage system and manure cleaning system.It is a traditional raising mode.
Adopted automatic feeding, drinking and environmental control system can help us save energy and labor cost, greatly improve the working efficiency. Meanwhile,the manure cleaning system is easy to use and maintain with environmental water shortage alarm functions.

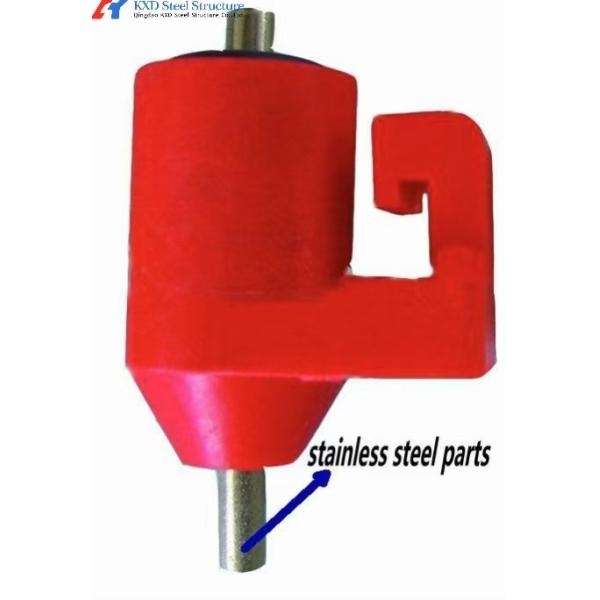

Poultry Automatic Nipple
Poultry Automatic Nipple 12nipple or 15nipple/3mDrinking/drinker system for your choice: Square water pipe with galvanized support Round water pipe with aluminum support Square water pipe with aluminum support Different Type Nipple Drinker But All is Double seal structure.
Pressure Regulator
Double water-inlet-tube and flushing pressure regulator ensure large water flow . water-level display pipe hanging system.
The Floor Description
1. Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas is 5.46㎡.
2. The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be put per cage unit.For 4 tiers,440 birds can be put per cage unit. The distance between two adjacent cage frames should be more than 1.2m.
3. For each tier there are two watering lines and one feeding line. There are 2 feeding pans and 12 nipples for drinking.
4. The material of the main equipment is galvanized steel. The galvanization standard for main parts is more than 275g/㎡(accord with international standard GB/T2518-2008).The material has excellent anti-rust and anti-corrosion properties
4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher utilization of space reduced energy costs for heating or cooling.
The Floor SPecification
| Product name | Floor Broiler Pan Feeding System |
| Type | Automatic |
| No. Of birds/pan | 55-75 broiler per pan |
| Hopper | Hot galvanized ,70kg or customization |
| Motor | China TIANRUI Brand |
| Feed pipe | 4 Holes /3040mm,with or without rib;1.2mm thickness |
| Auger | China Technical Brand / 45MM |
| Feed pan | 330mm diameter; with grill or without grill |
| Feed lever sensor | France IFM Brand |
| Suspention Part | Pulley,Steel Wire,Manual Witch etc |
Our One-Stop Service
1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.

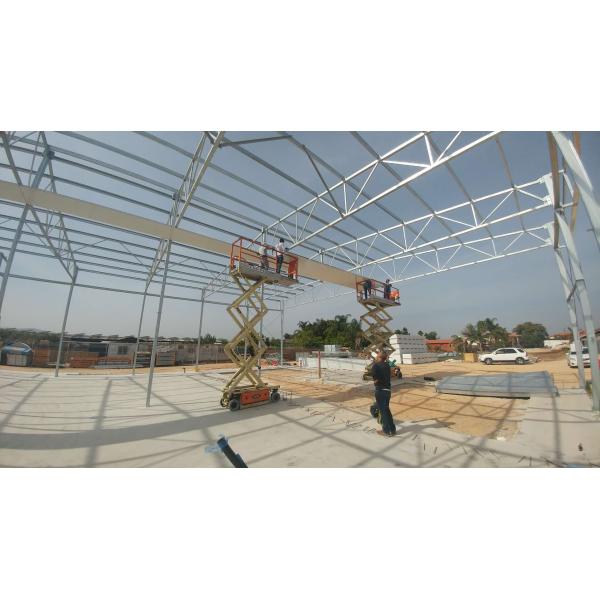

5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements

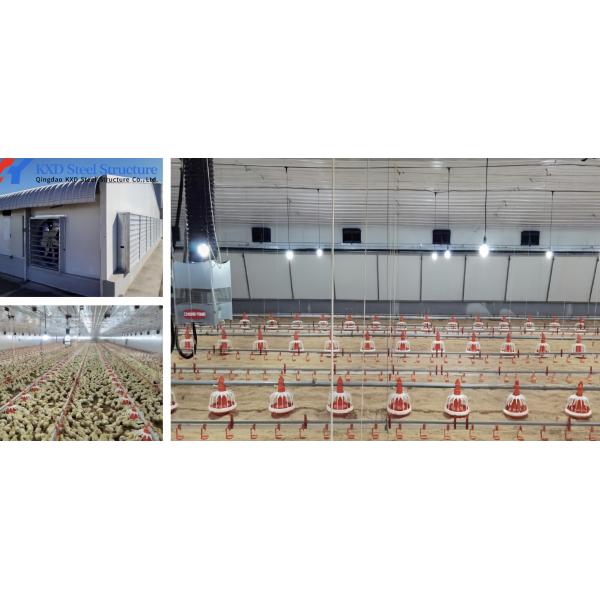

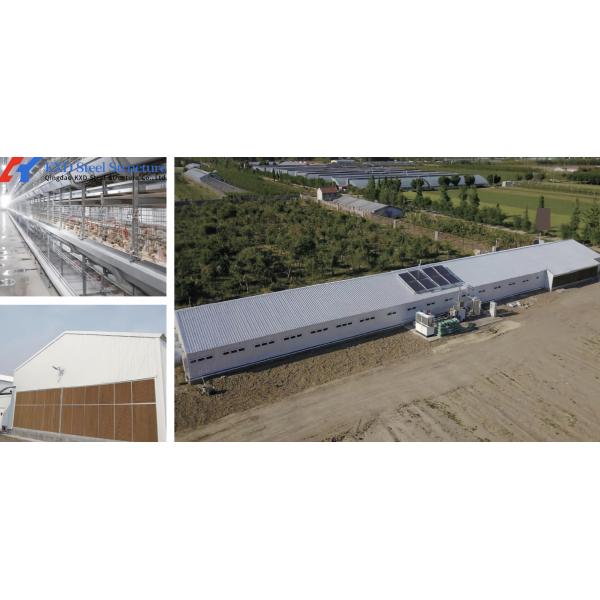

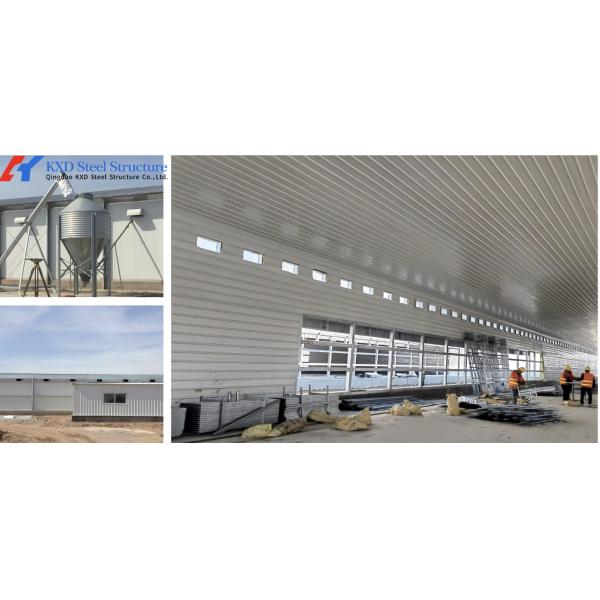

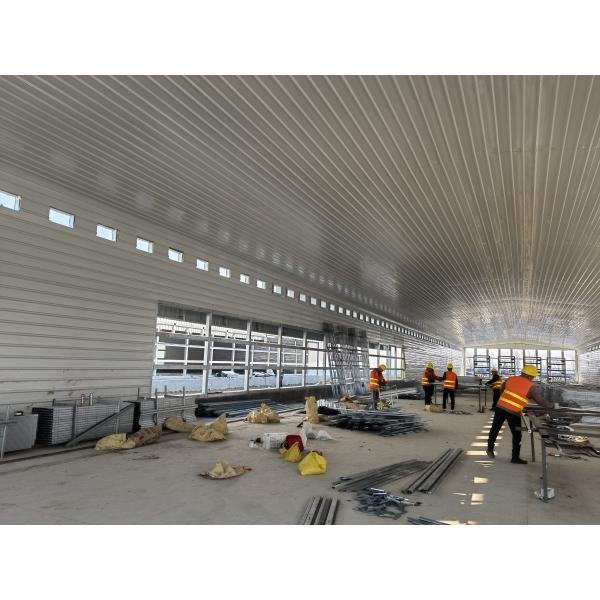

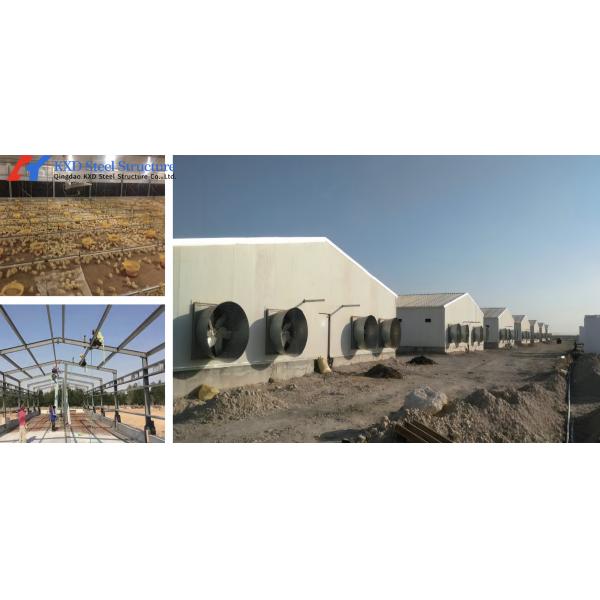

Some Projects
Introduction of KXD
Qingdao KXD Steel Structure Co., Ltd. has many years of experience in EPC design, production equipment, and services for piggery and poultry farms. As a provider of piggery and poultry breeding solutions, the company has developed a comprehensive product and solution system through its services and practices.
High Grade Production Quality
KXD has a strict product quality control system and is dedicated to creating high-quality projects for customers.
Mature Technological Strength
Based on the development trend of the industry, KXD has been researching and developing new products, new technologies and new processes .
A Comprehensive Product System
KXD has a strict product quality control system and is dedicated to creating high-quality products for customers.
Exquisite Service Level
KXD provides detailed pre-sales consulting services, installation services, and after-sales services for your breeding farm.
A Broad Business Scope
KXD's sales and service network covers all over the world, and its high-quality equipment has been recognized by users worldwide, attracting customers from all over the world to come and inspect.
