Steel Structure Specification
| Standard | AiSi, ASTM, DIN, GB, JIS | Transport And Packing | 20'/40' Container |
| Steel Grade | Q235B And Q355B | Function | Insulation And Fireproof |
| Connection | Bolts Connection | Surface Treatment | Galvanized or Painted |
| Type | Poultry House | Structure Type | Light Steel Structure |
| Frame Type | Portal Frame Or Steel Roof Truss | Main Steel Frame | H Beam or Square Pipe With Anti-rust Paint or Hot Dip Galvanized |
| Roof &Cladding | 75mm Glass Wool Sandwich Panel Composite On Site | Door | Special Insulation Door For Poultry House |
| Window | Plastic Steel Sliding Window |
|
|
Broiler Feeding on Ground
Broiler feeding system, consists of automatic feeding&drinking system, environmental control sewage system and manure cleaning system.It is a traditional raising mode.
Adopted automatic feeding, drinking and environmental control system can help us save energy and labor cost, greatly improve the working efficiency. Meanwhile,the manure cleaning system is easy to use and maintain with environmental water shortage alarm functions.
Broiler Feeding in Cages
1. A variety of cages to meet the needs of different spans of housing construction
2.The frame structure satisfies the overall stability of the equipment, the mesh wear-stress is changed into a sheet metal wear-stress, which can prevent deformation of the mesh.
3. The main frame of the equipment is formed by one-time forming of 275g hot-dip galvanized sheet, which guarantees the anti-rust ability of the equipment under the premise of meeting the strength of the equipment.
4. The cage door is a fully open structure. When the chicken is caught, the chicken wing breaking rate is reduced, which is convenient for operation.5. Double-layer scraping structure ensures sufficient separation of manure and feces.
6. After the welding of the mesh is completed, it will be hot-dip galvanized, so it is corrosion-resistant and anti-aging, which has a service life of 10-15 years.
Layers Feeding in Cages
• Adopt hot-dip galvanization technology to ensure the service life of 20-25 years.
• H-type cage is the room saver, can reach more breeding quantity.
• Automatic drinking, feeding, manure cleaning and egg collecting can greatly save energy and improve the working efficiency
• Long service life, high stability, and high output rate of return and comprehensive rate.
• High degree of mechanization, high degree of hygiene in the chicken house, low irritating smell, and clean feces disposal in place. H type cage can meet the needs of large-scale farming
Poultry Shed Equipment

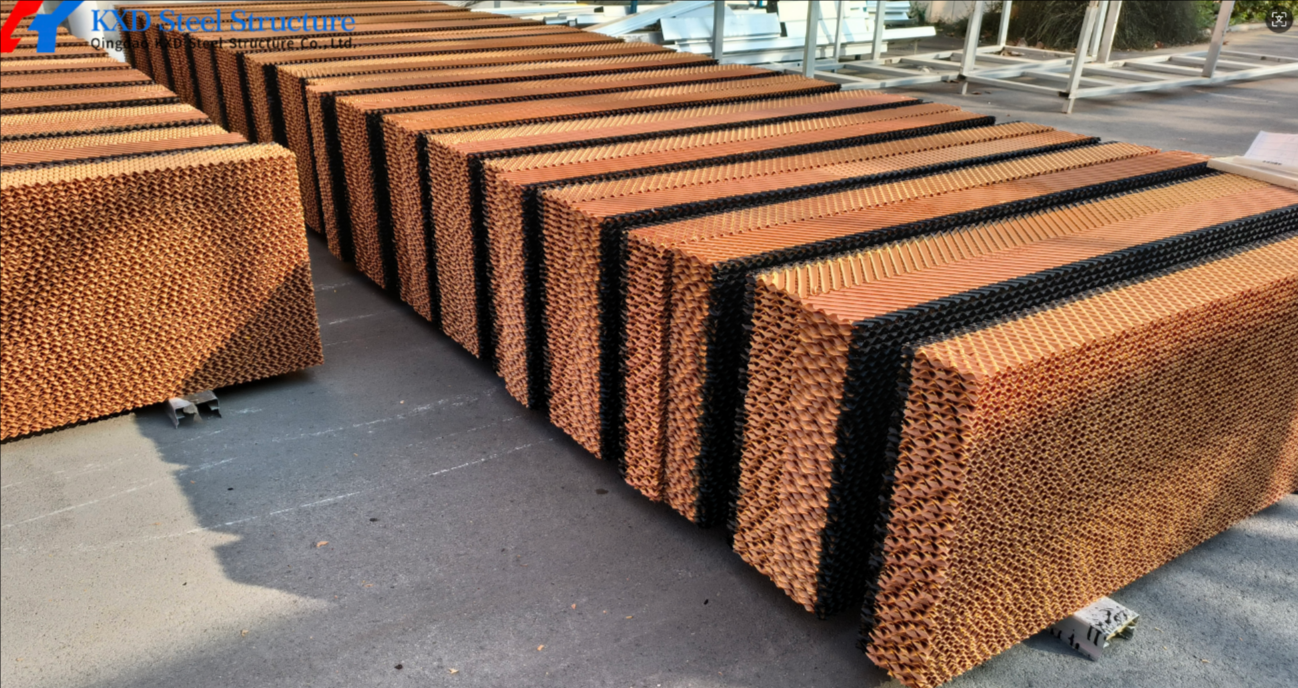

Including Feeding System, Drinking System, Cooling and Ventilation, Power Controlling system, Manure Cleaning System, Environment Control System.
Design
Our Service
1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our clients.
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.

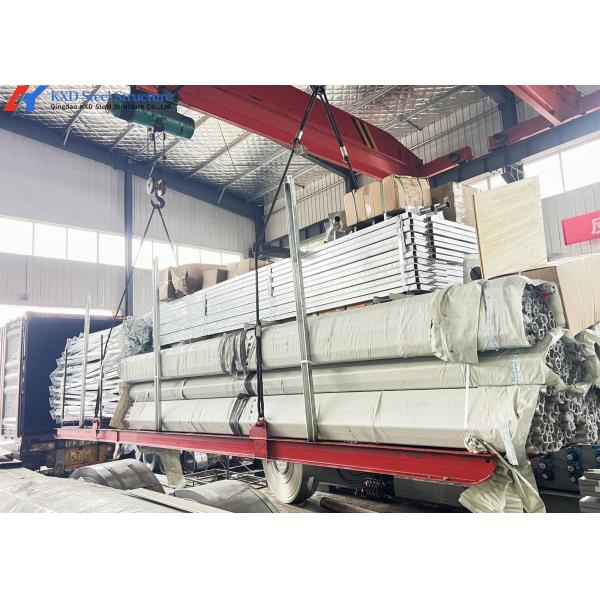

6. Transportation & delivery per your requirements
