Steel Poultry Shed Specification
| Main steel structure | Column | Q235,Q355 Welded H Section Steel |
| Beam | Q235,Q355 Welded H Section Steel |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee Brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |

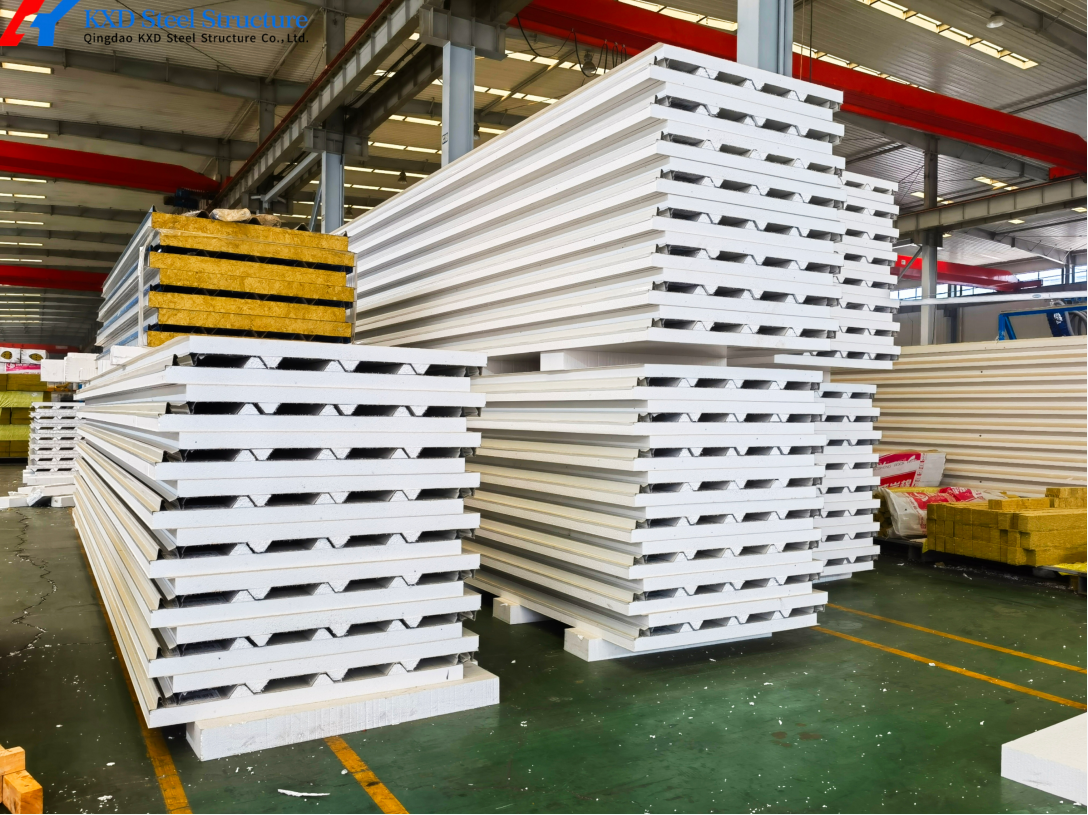

| Maintenance System | Roof Panel | EPS/Glass fiber /Rock wool sandwich panel |
| Wall Panel | Sandwich panel/ Corrugated Steel sheet |
| Place of Origin | Shandong, China | Certificate |
| Accessories | Window | Aluminium alloy window/ PVC window/Sandwich panel window |
| Door | Sliding sandwich panel door/Rolling mental door/Personal door |
Broiler Feeding on Ground
Feed Pan Details
| Condition | New | Name | Broiler Pan Feeder |
| Warranty | 1 Year | Application | Poultry Farm Chicken Feeding |
| key Sell Points | Competitive Price& High Quality | Weight | 0.9 KG |
| Place of Origin | Shandong, China | Capacity | 15-20 Broiler/ Pan |
| Brand Name | KXD | Operation | Full-automatic |
| Material | Plastic | Installation | Support Online Installing& on-site installation |
| Package | Carton | Feed line | 4Pan/3M |
The Floor Description
1.Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas is 5.46㎡.
2.The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be put per cage unit.For 4 tiers,440 birds can be put per cage unit. The distance between two adjacent cage frames should be more than 1.2m.
3.For each tier there are two watering lines and one feeding line. There are 2 feeding pans and 12 nipples for drinking.
4.The material of the main equipment is galvanized steel. The galvanization standard for main parts is more than 275g/㎡(accord with international standard GB/T2518-2008).The material has excellent anti-rust and anti-corrosion properties
4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher utilization of space reduced energy costs for heating or cooling.
The Floor SPecification
| Product name | Floor Broiler Pan Feeding System |
| Type | Automatic |
| No. Of birds/pan | 55-75 broiler per pan |
| Hopper | Hot galvanized ,70kg or customization |
| Motor | China TIANRUI Brand |
| Feed pipe | 4 Holes /3040mm,with or without rib;1.2mm thickness |
| Auger | China Technical Brand / 45MM |
| Feed pan | 330mm diameter; with grill or without grill |
| Feed lever sensor | France IFM Brand |
| Suspention Part | Pulley,Steel Wire,Manual Witch etc |
A type Cage
• Adopt hot-dip galvanization technology to ensure the service life of 15-20 years.
• Long service life, high stability, and low cost of the equipment.
• Semi-Automatic drinking and manure cleaning can help to save energy and improve the working efficiency.
• Well ventilation, comfortable environment, easy to operate.
• Low proportion between forage and egg, low production costs. Applicable to manual or semi-automatic, open chicken house raising. The breeding quantity is no more than 20k layers, recommended to use.
•It also helps to save operator's time and labor cost, and improve raising performance.
Environmental System
The advanced livestock and poultry environment controller adopts the latest intelligent control technology, which combines temperature, humidity, static pressure, ventilation, lighting and other parameters with the poultry feeding process parameters. It has the characteristics of stable temperature control, adequate and reasonable ventilation, automatic timing lighting, accurate and reliable. The controller adopts large-scale touch screen, which can directly display the operation status of all equipment in the poultry house, and it is easy to operate.
Inlet Details
| Core Components | Cone Plate | Material | High Quality PVC and ABS |
| Warranty | 5 Years | Advantage 1 | Easy Clean and Easy Installation |
| Weight | 3 | Advantage 1 | Anti-aging |
| Place of Origin | Shandong, China | Application | Poultry Farm Chicken |
| Brand Name | KXD | After sale Service | Online support, Video technical support |
Why Choose Us
Qingdao KXD Steel Structure Co., Ltd. has many years of experience in EPC design, production equipment, and services for piggery and poultry farms. As a provider of piggery and poultry breeding solutions, the company has developed a comprehensive product and solution system through its services and practices.
High Grade Production Quality
KXD has a strict product quality control system and is dedicated to creating high-quality projects for customers.
Mature Technological Strength
Based on the development trend of the industry, KXD has been researching and developing new products, new technologies and new processes .
A Comprehensive Product System
KXD has a strict product quality control system and is dedicated to creating high-quality products for customers.
Exquisite Service Level
KXD provides detailed pre-sales consulting services, installation services, and after-sales services for your breeding farm.
A Broad Business Scope
KXD's sales and service network covers all over the world, and its high-quality equipment has been recognized by users worldwide, attracting customers from all over the world to come and inspect.
Package & Loading
Our Factory
